Diverter Valve

Bulk-solids handling equipment for regulating the flow of bulk-solids

The diverter valve is designed to redirect the flow of powdered or granular materials by mechanically shifting the valve core or rotor through rotation, sliding, or flapping actions. This adjustment modifies the internal passageway to route material from a main pipeline to one of several branch lines, enabling flexible control over the flow direction during pneumatic or mechanical conveying.

Request a Quote

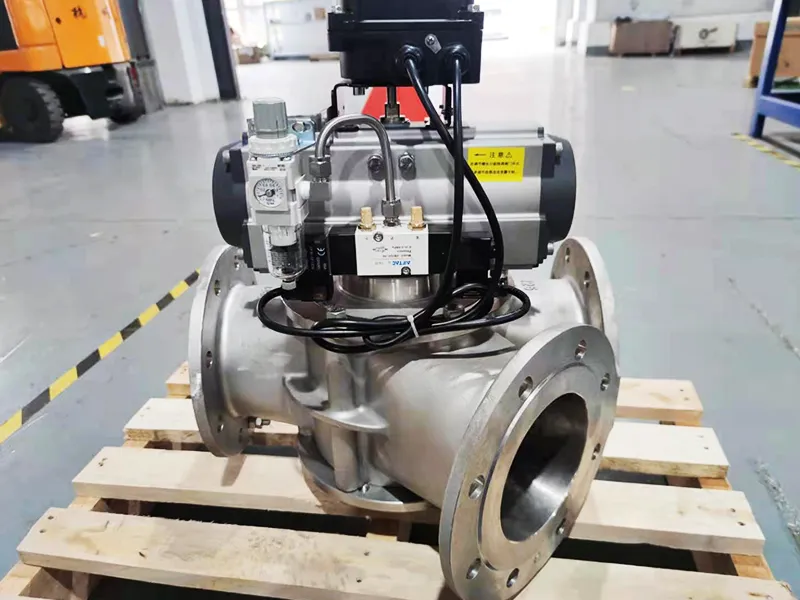

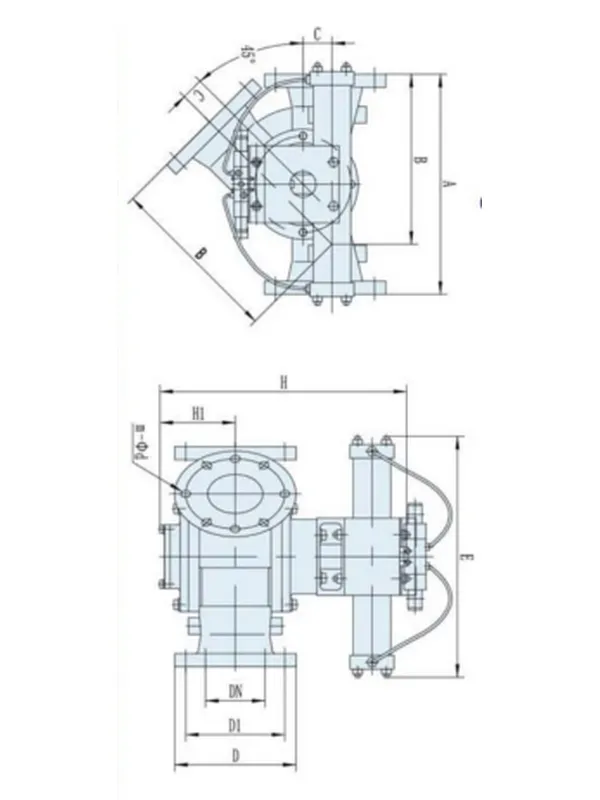

Specifications of FL Diverter Valve (mm)
Model DN D1 D A B C E H H1 m-Ød Weight (kg)
FL50 50 125 165 328 224.4 25 262 366 93 4-17.5 40
FL65 65 145 185 350 227 30 262 410 114 4-17.5 45
FL80 80 160 200 358 263.5 35 430 423 125 8-17.5 63
FL100 100 180 220 400 296.6 40 430 445 130 8-17.5 75
FL125 125 210 250 450 333.6 45 438 506 150 8-17.5 118
FL150 150 240 285 510 375.7 50 438 561 165.7 8-22 133
FL175 175 270 315 525 407.4 60 438 591 181 8-22 146
FL200 200 295 340 565 439.4 65 618 693 197 8-22 215
Diverter Valve

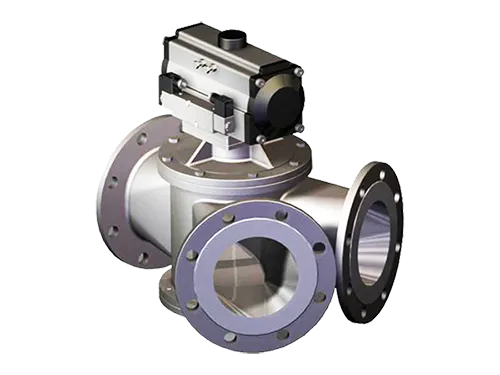

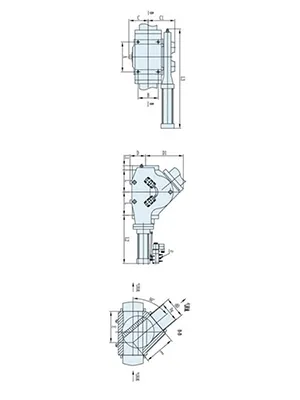

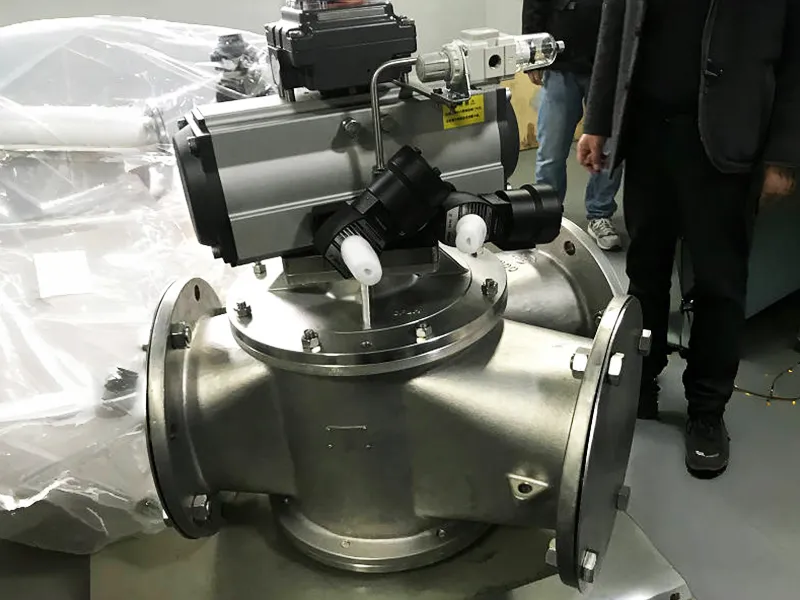

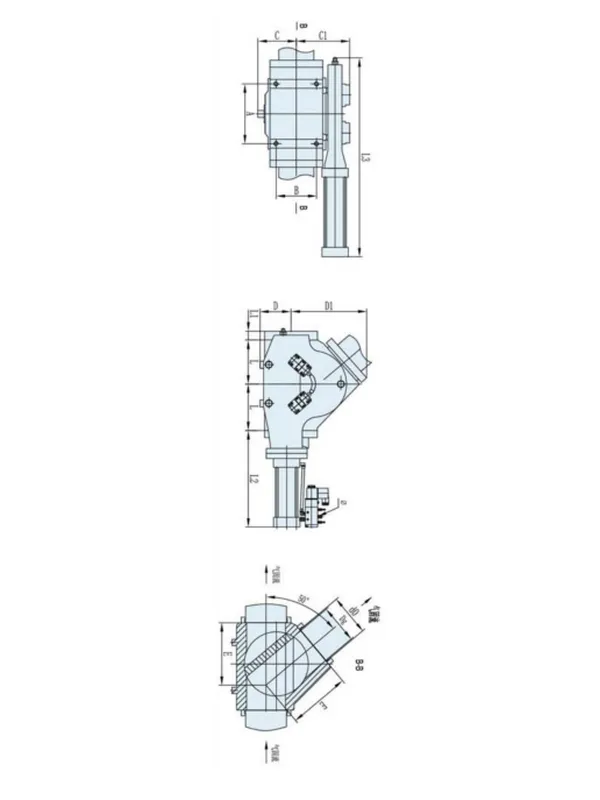

Specifications of THFX Diverter Valve (mm)
Model A B C C1 D D1 Dg d0 E L L1 L2 L3 Ø
THFX65 110 75 76.5 103.5 60 140 65 73 124 80 12 196 408 G1/4
THFX80 135 92 88 132 70 172 80 89 150 100 16 210 436 G1/4
THFX100 170 115 110 167 88 216 100 108 190 125 20 280 565 G1/4
THFX125 154 140 123.5 206.5 110 215 125 133 205.4 140 20 338 676 G3/8
THFX150 210 160 145 220 124 248.5 150 159 237.2 160 22 368 670 G1/2
THFX175 240 180 150 230 135 273.5 180 190 260.8 175 22 345 738 G1/2
THFX200 280 220 177 255 153.5 317 203 219 300 200 25 428 878 G1/2
THFX225 310 240 194 267 169 347 228 245 245 220 25 428 900 G1/2
THFX250 350 270 210 284 284 385 255 273 273 245 25 468 993 G1/2
Diverter Valve
Features
  • Constructed using precision-cast housings and core components for enhanced durability and a refined appearance.
  • Available in multiple structural forms to accommodate different material types and conveying applications.
  • Internal passages are smooth and streamlined to minimize flow resistance and ensure efficient material transfer.
  • Pneumatic actuator options allow for full automation and reliable switching with minimal operator intervention.
  • Various outlet angles available, including 45°, 60°, and 90°, to suit specific pipeline configurations.
Applications

Diverter valves are widely used in industries handling dry bulk-solids, including:

  • Chemical processing
  • Power generation and metallurgy
  • New energy materials
  • Food, pharmaceutical, and edible oil industries
  • Building materials and environmental sectors
