BULK-SOLIDS HANDLING
Weighing & Dosing System

Weighing & Dosing System

Bulk-solids handling equipment for the precise weighing and dosing of bulk-solids

Designed for precise measurement of a single material or the controlled batching of multiple materials, our weighing and dosing systems are engineered to ensure process accuracy, operational efficiency, and ease of integration.

Specifications
  • Weighing Accuracy: 1‰-5% (depending on actual process)
  • Full Load Weight: 0-1000T (depending on actual process)
  • Weighing Speed: 0-60t/h
Request a Quote
Features
  • High weighing accuracy: Load cell modules can achieve a precision of 1‰, and overall system accuracy can be customized to meet user requirements.
  • Supports both static weighing and dynamic dosing operations.
  • Detachable components allow for easy cleaning and maintenance.
  • Modular design: The system is composed of standardized, independently functioning modules, each dedicated to a specific task. These modules can be flexibly configured to accommodate a wide range of processing scenarios and layout requirements.

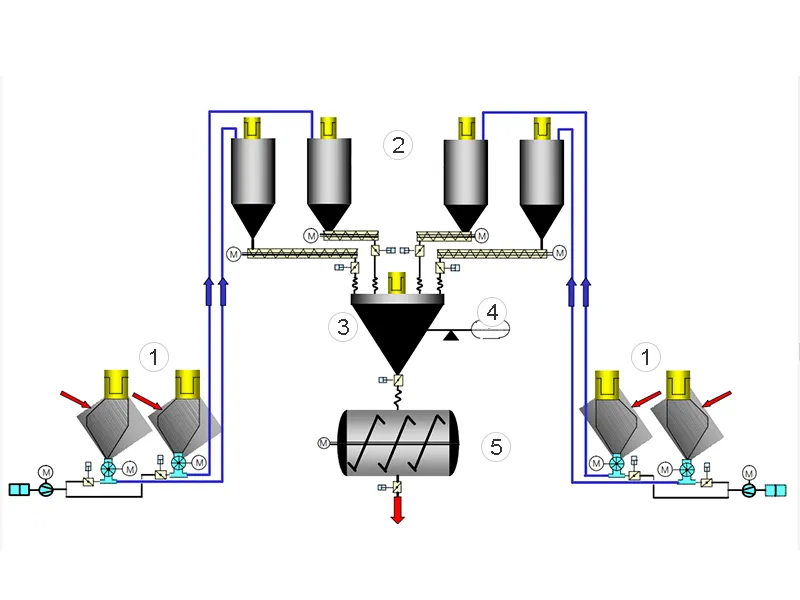

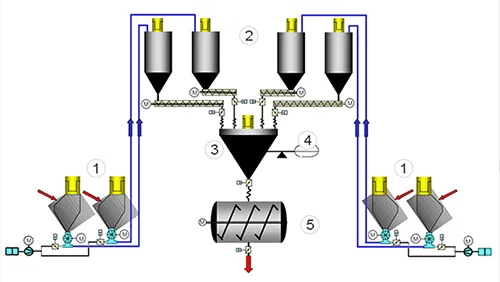

Weighing of Various Components
Weighing & Dosing System
  • Bag Dumping
  • Day Hoppers
  • Weigh Hopper
    (Scale Hopper)
  • WISHL
  • Mixer
Types of Weighing System
Gain-in-Weight System

A gain-in-weight system determines material quantity by measuring the increase in weight as materials are added to the weigh hopper. It is widely used in both batch and continuous feed applications where precise control over incoming material is required.

Application Scenarios:

  • Batching systems: Used in industries such as food processing, chemicals, and pharmaceuticals for accurate formulation and pre-mixing of raw materials.
  • Packaging lines: Ensures accurate filling of products by weight, such as bagged food products or bulk goods.
  • Construction materials: Deployed in concrete mixing plants for proportioning materials like cement, sand, and aggregates.
Loss-In-Weight System

A loss-in-weight system calculates flow rate based on the reduction in material weight during discharge. It is typically used for dynamic feeding, where materials are continuously fed out of the hopper until a target threshold is reached, at which point the system is refilled.

Application Scenarios:

  • Powder and granular feeding: Ideal for continuous automatic feeding in food, pharmaceutical, and chemical industries—e.g., dosing of milk powder or fine sugar.
  • Blending and compounding: Ensures accurate ingredient ratios in continuous production lines that handle multiple materials.
  • Bulk-solids management: Used in mining and construction industries for large-volume material dosing and flow control.
  • Other Bulk Handling Systems
  • Valves and Equipment
  • Customization
Customization

Since its establishment in 2008, ShineRay has built a strong presence with headquarters in Nanjing and multiple branches across Shandong, Fujian, and other regions. We have served thousands of domestic customers by providing comprehensive support throughout the entire process from early-stage budgeting and solution consultation to sales coordination, contract execution, and after-sales service.

  • Design: We provide customized design solutions tailored to your specific operational needs.
  • Procurement: We maintain long-term partnerships with over 400 high-quality suppliers, ensuring strict quality control at every stage.
  • Manufacturing: With over 10,000 square meters of production space, we are capable of handling multiple large-scale equipment builds at the same time.
  • Installation Supervision & Commissioning: Our team includes engineers with over 10 years of on-site experience, ensuring precise equipment installation and smooth commissioning.
  • After-Sales Support: Our dedicated after-sales service team provides 24/7 support for both domestic and international projects.
